Intersection Points on the Dress Form: Where Measurements Start and End

Intersection points are where two dress form landmarks meet. Measurements run between them, and these are the eight points used in pattern drafting.

Published November 20, 2009 · Updated September 5, 2026

On this page

Waistline intersections Center front and waistline Center back and waistline Side seam and waistline Shoulder and armhole intersections Shoulder and armhole Shoulder and neckline Side seam and armhole Neckline intersections Neckline and center front Neckline and center back All intersections together Frequently asked questions What is an intersection point? Why measure between intersections rather than along a line? Which intersection sets the armhole depth?

An intersection point is where two landmark lines on a dress form meet. They matter for one specific reason: measurements are taken from one intersection point to another, so these points are the fixed references that every pattern measurement depends on.

A line alone is not enough to measure from, because a line has length. A point where two lines cross is unambiguous, and that is why pattern drafting works from intersections rather than from the landmarks themselves.

Waistline intersections

Center front and waistline

Where the center front line crosses the waistline. The starting point for front bodice and skirt length measurements.

The intersection of the center front line and the waistline on a dress form — Center front meeting the waistline

Center back and waistline

The same point on the back of the form.

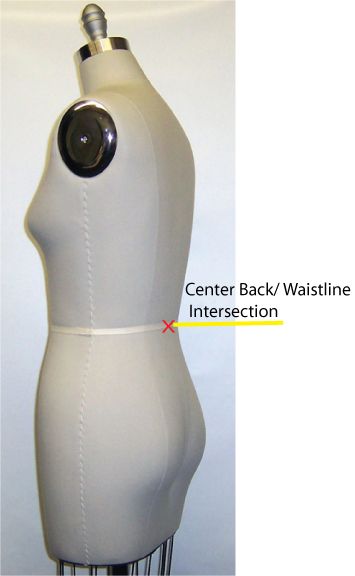

The intersection of the center back line and the waistline on a dress form — Center back meeting the waistline

Side seam and waistline

Where the side seam crosses the waistline, which is the reference for side lengths and for the position of the waist at the side of the body.

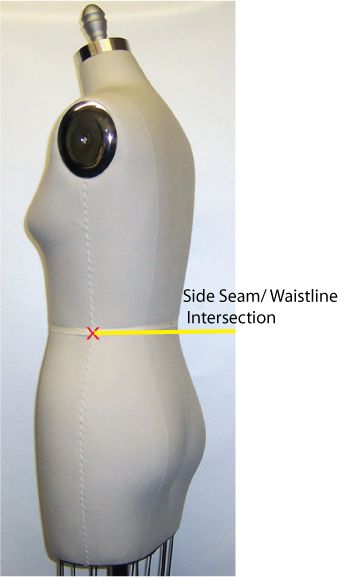

The intersection of the side seam and the waistline on a dress form — The side seam meeting the waistline

Shoulder and armhole intersections

Shoulder and armhole

Where the shoulder line meets the armhole. This point determines the shoulder width of a garment and where a sleeve head is set.

The intersection of the shoulder line and the armhole on a dress form — The shoulder line meeting the armhole, which sets sleeve placement

Shoulder and neckline

Where the shoulder line meets the neckline, the inner end of the shoulder measurement.

The intersection of the shoulder line and the neckline on a dress form — The shoulder line meeting the neckline

Side seam and armhole

Where the side seam meets the armhole, at the underarm. This point sets the depth of the armhole.

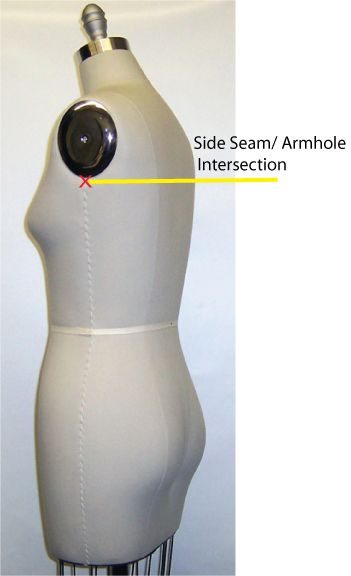

The intersection of the side seam and the armhole on a dress form — The side seam meeting the armhole at the underarm

Neckline intersections

Neckline and center front

The base of the front neck, from which every front neckline depth is measured.

The intersection of the neckline and the center front on a dress form — The neckline meeting center front, the reference for neckline depth

Neckline and center back

The base of the back neck, and the reference point for full garment length measured down the back.

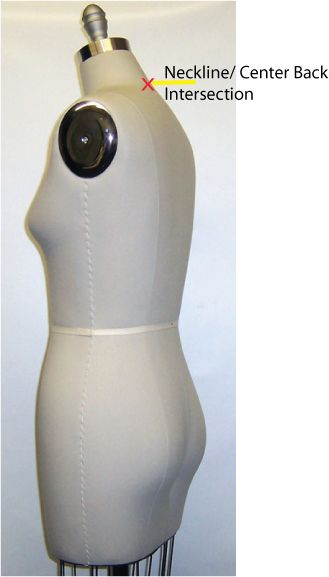

The intersection of the neckline and the center back on a dress form — The neckline meeting center back, from which back length is measured

All intersections together

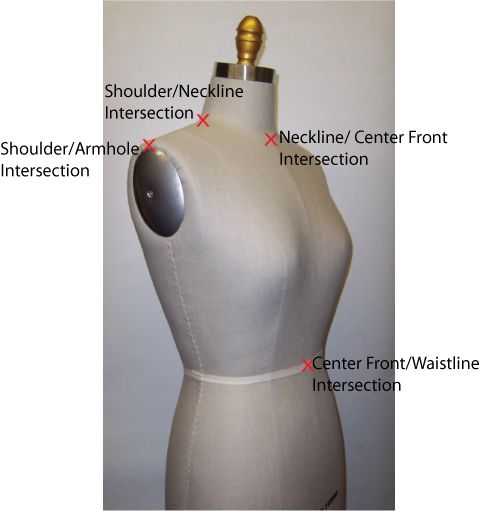

A dress form showing multiple intersection points together — The intersection points shown together on the form

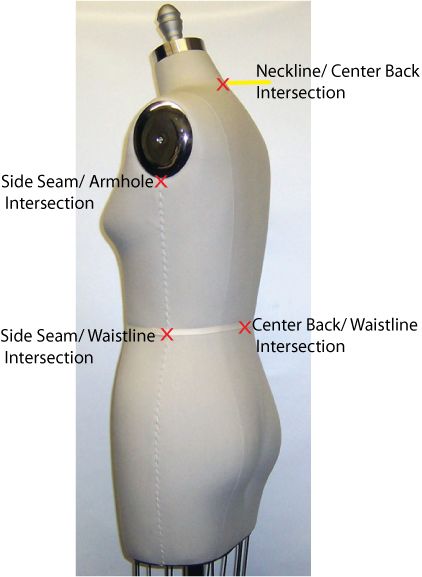

A dress form showing intersection points from another angle — The same points seen from another angle

Frequently asked questions

What is an intersection point?

The point where two landmark lines on a dress form cross each other.

Why measure between intersections rather than along a line?

Because a point is unambiguous and a line is not. Two people measuring from the same intersection get the same result.

Which intersection sets the armhole depth?

The point where the side seam meets the armhole, at the underarm.
